| Hand-held transformer are designed for your easy manual manipulation, and also can be integrated into robot arm for automatic production. |
|

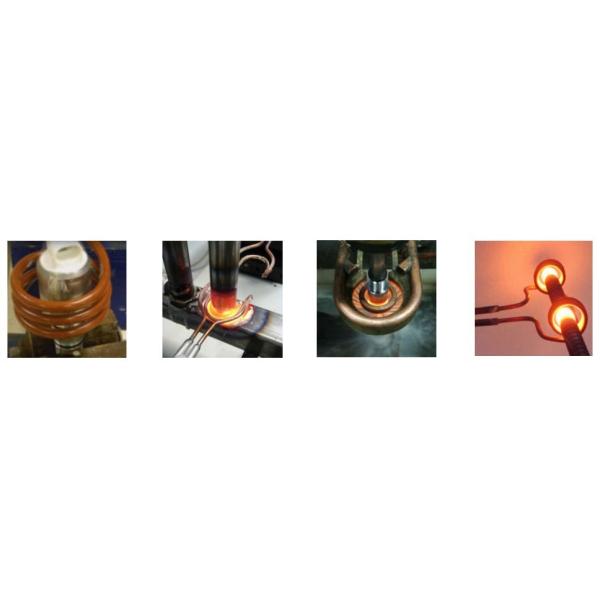

| Induction coils are easy for assemble and dismantle from hand-hold transformer, so you can connect with different coil for different application. |
|
| >1000℃ |
|
| with enough power, targed temperature can be reached within seconds. |
|
| Steel, stainless steel, copper, aluminum, titanium, etc |
|
 |
| Model NO. | Input | Output | Cooling water pressure/ flow rate | Dimension
(mm) | appearance | IP
degree |
| CR2100-010B-14TW1 | power:10KVA
voltage:3-phase/400V
freq.:50-60Hz
current:15A | power:8kW
(duty cycle100%) freq.:10-40KHz | 4~6 bar,
≥12L/min | L:581.5
W:283
H:334 |  | IP23 |
| CR2100-015B-14TW1 | power:15KVA
voltage:3-phase/400V
freq.:50-60Hz
current:22A | power:12kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-020B-14TW1 | power:20KVA
voltage:3-phase/400V
freq.:50-60Hz
current:30A | power:16kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-025B-14TW1 | power:25KVA
voltage:3-phase/400V
freq.:50-60Hz
current:37A | power:20kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-030B-14TW1 | power:30KVA
voltage:3-phase/400V
freq.:50-60Hz
current:45A | power:24kW
(duty cycle100%) freq.:10-40KHz | 4~6 bar,
≥19L/min | IP23 |
| CR2100-035B-14TW1 | power:35KVA
voltage:3-phase/400V
freq.:50-60Hz
current:53A | power:28kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-040B-14TW1 | power:40KVA
voltage:3-phase/400V
freq.:50-60Hz
current:60A | power:32kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-050B-14TW1 | power:50KVA
voltage:3-phase/400V
freq.:50-60Hz
current:75A | power:40kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-060B-14TW1 | power:60KVA
voltage:3-phase/400V
freq.:50-60Hz
current:91A | power:48kW
(duty cycle100%) freq.:10-40KHz | 4~6 bar,
≥25L/min | L:475.5
W:456
H:1290.5 |  | IP23 |
| CR2100-080B-14TW1 | power:80KVA
voltage:3-phase/400V
freq.:50-60Hz
current:121A | power:64kW
(duty cycle100%) freq.:10-40KHz | IP23 |
| CR2100-100B-14TW1 | power:100KVA
voltage:3-phase/400V
freq.:50-60Hz
current:152A | power:80kW
(duty cycle100%) freq.:5-25KHz | 4~6 bar,
≥35L/min | IP23 |
| CR2100-120B-14TW1 | power:120KVA
voltage:3-phase/400V
freq.:50-60Hz
current:182A | power:96kW
(duty cycle100%) freq.:5-25KHz | IP23 |
| CR2100-160B-14TW1 | power:160KVA
voltage:3-phase/400V
freq.:50-60Hz
current:243A | power:128kW
(duty cycle100%) freq.:5-25KHz | 4~6 bar,
≥50L/min | L:671.5
W:780
H:1986.5 | | IP23 |
| CR2100-200B-14TW1 | power:200KVA
voltage:3-phase/400V
freq.:50-60Hz
current:303A | power:160kW
(duty cycle100%) freq.:5-25KHz | IP23 |
| CR2100-250B-14TW1 | power:250KVA
voltage:3-phase/400V
freq.:50-60Hz
current:380A | power:200kW
(duty cycle100%) freq.:5-25KHz | 4~6 bar,
≥60L/min | IP23 |
| CR2100-300B-14TW1 | power:300KVA
voltage:3-phase/400V
freq.:50-60Hz
current:456A | power:240kW
(duty cycle100%) freq.:5-25KHz | IP23 |
